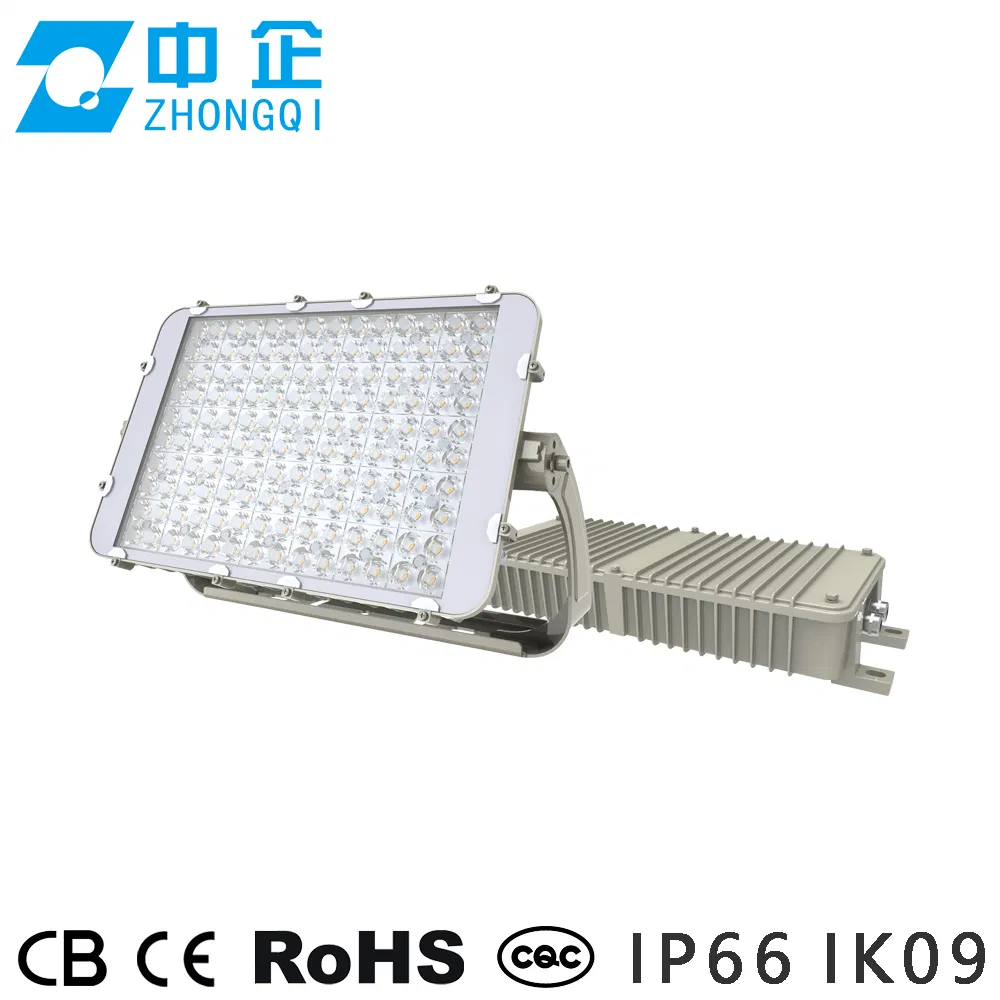

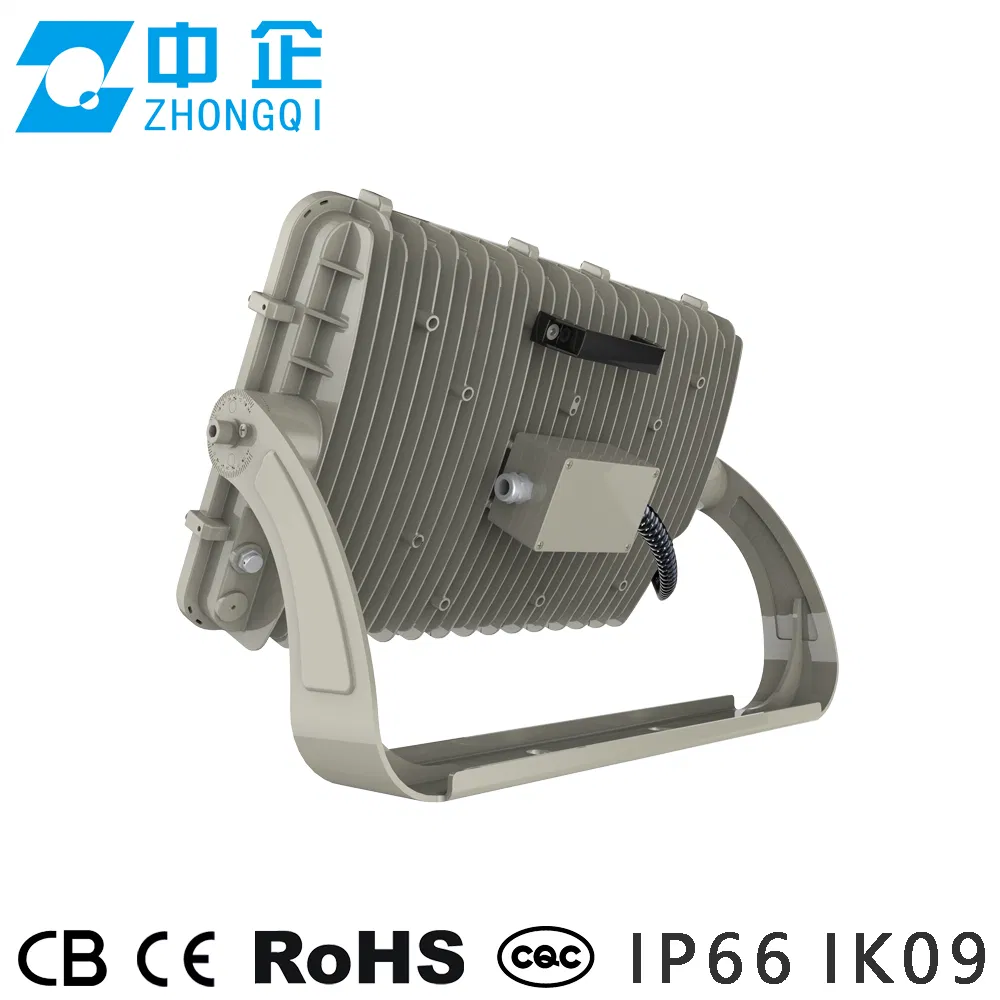

Beam Angle 8 Degree 15degree Hot Sale LED Solar Lamp OEM LED Flood Light with Smart LED Driver Motion Sensor Stainless Steel CE RoHS LED Light

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview - Basic Info
Model NO.
TYZQ-FD109L
Power
50-400W
Projection Distance
>35m
IP Rating
IP66
Operating Voltage
100-240V
LED Chips Brand
Epistar
Lpw
120lm/W - 200lm/W
Housing Color
White Black Grey Customized
Material
Tempered Glass PC Lens Aluminum
Beam Angle
8 / 15 / 25 / 30 / 40 / 60 / 90 / 120 Degree
Application
Park, Square, Factory, Stadium, Airport
Surge Protection
10kv / 20kv SPD

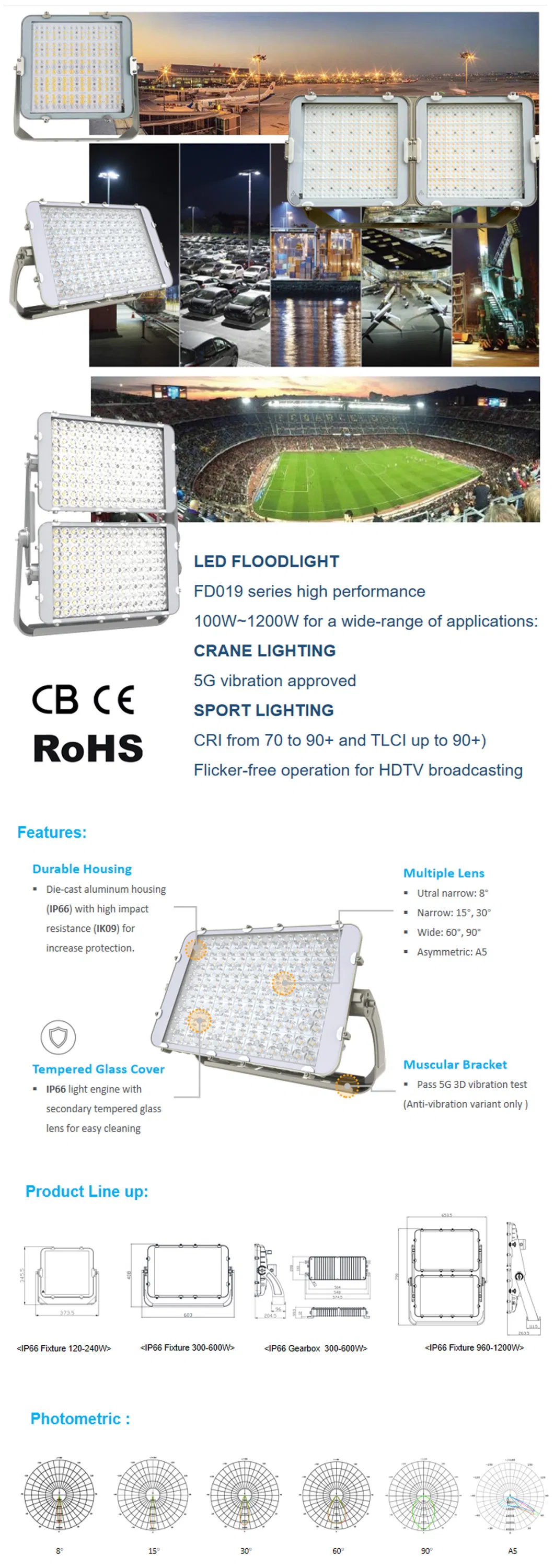

Product Features

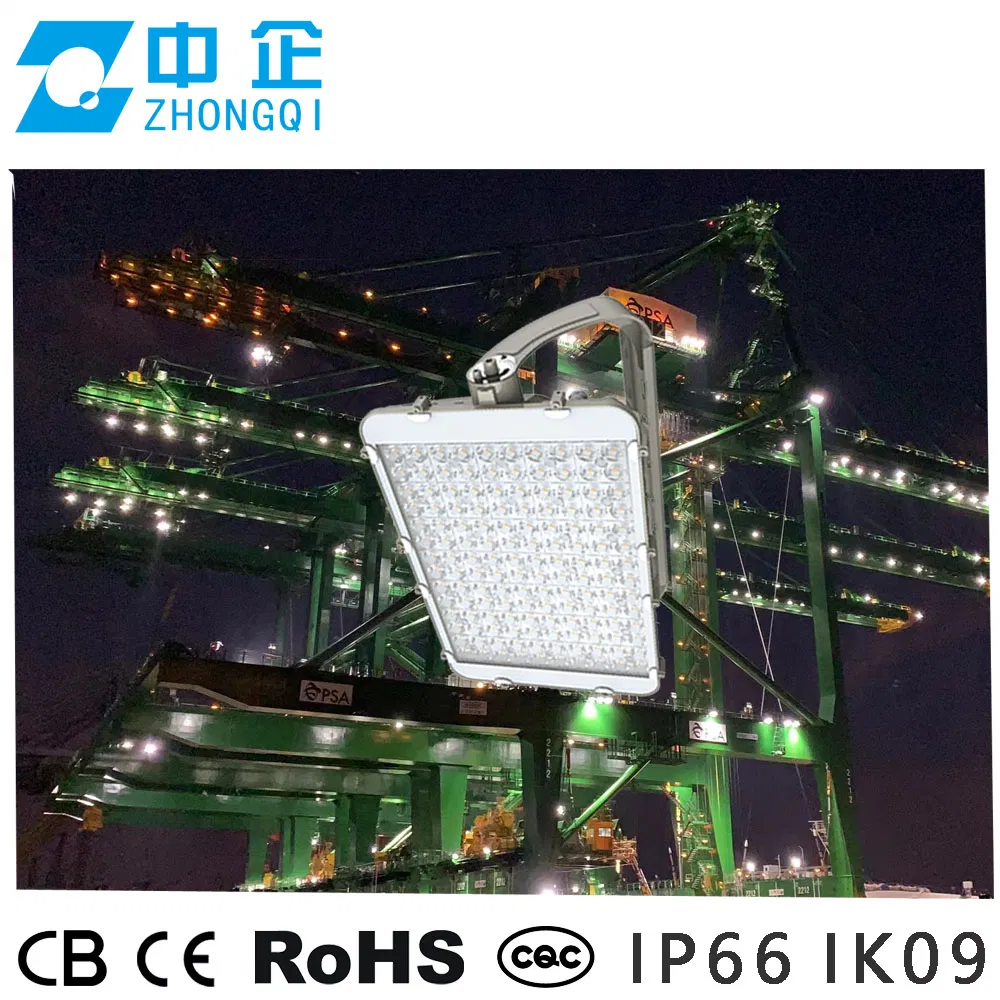

FD019 series floodlight born for harsh environment with high vibration and salt fog.
5G vibration test approved (ANSI C136.31 / JIS C 60068-2-64).
1000 hours salt spray test, IP66, IK09 CE CB RoHs certificated.
Die-casting housing with a wide power range from 100W to 1200W.
Multiple optic lens options: 8°, 15°, 25°, 30°, 60°, 90°, and asymmetric.
Tempered glass protecting PC lens from UV, moisture, and dust.

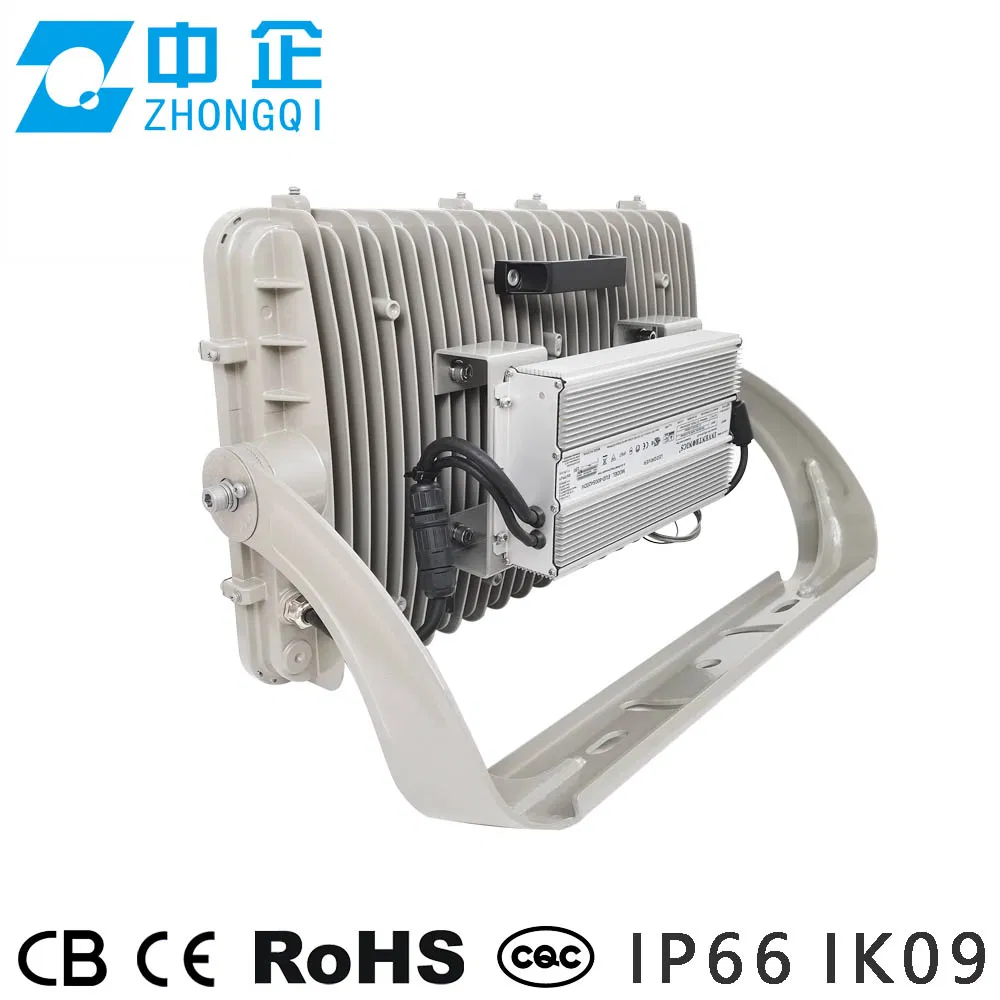

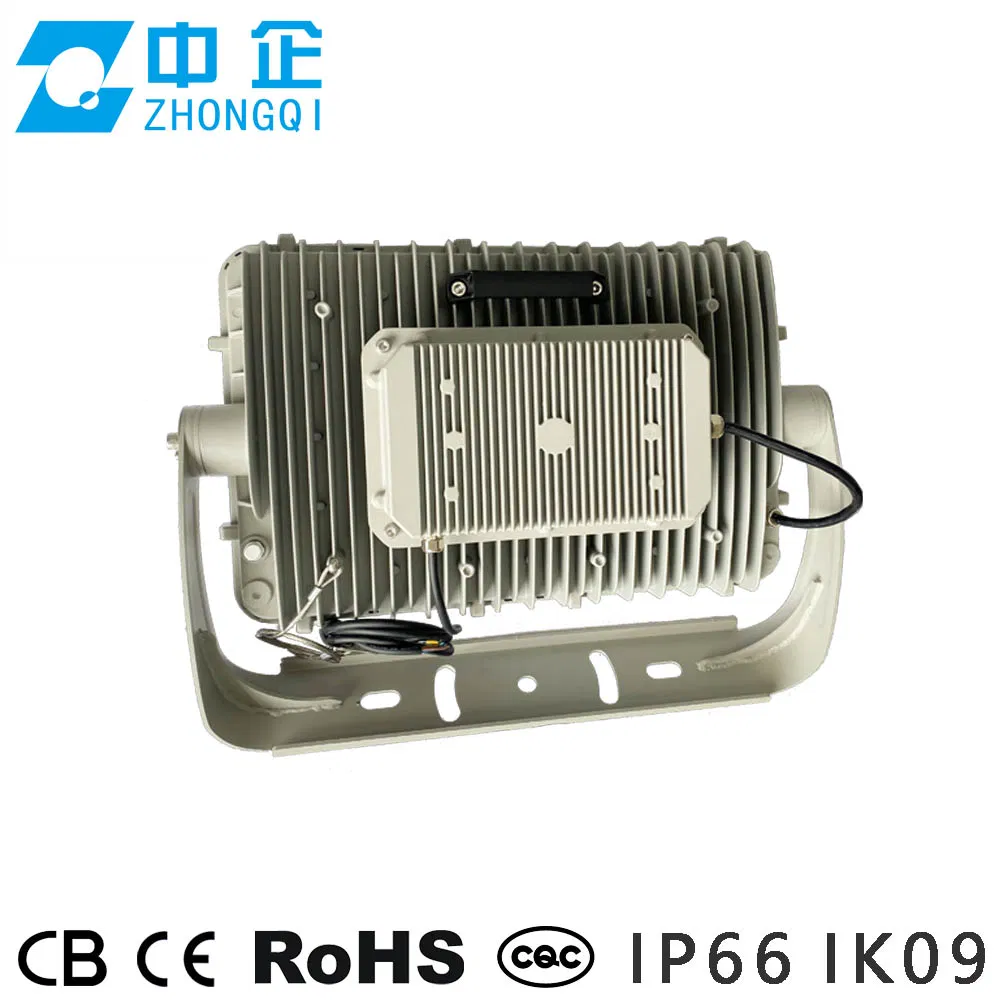

Separate IP66 driver chamber for superior heat dissipation.
Dimming options: 1-10V (Standard), PWM, DALI, and 3-Timer-Modes.
Technical Parameters
Input Voltage Frequency PF CRI CCT Lifetime Ta IK
AC90-305V 50/60HZ 0.95 >70 2200-6500K >50,000H -25ºC ~ 55ºC IK09
Model Power(W) Premium LPW Standard LPW N.W.(kg) Product Size(mm)
TYZQ-FD019100W150 lm/W130 lm/W7.10346*370*152
TYZQ-FD019200W150 lm/W130 lm/W7.30346*370*152
TYZQ-FD019300W150 lm/W130 lm/W17.30605*408*204
TYZQ-FD019480W150 lm/W130 lm/W17.80605*408*204
TYZQ-FD019600W150 lm/W130 lm/W14.3/7.2605*408*204
TYZQ-FD0191200W150 lm/W130 lm/W30.0/10.2790*653*263

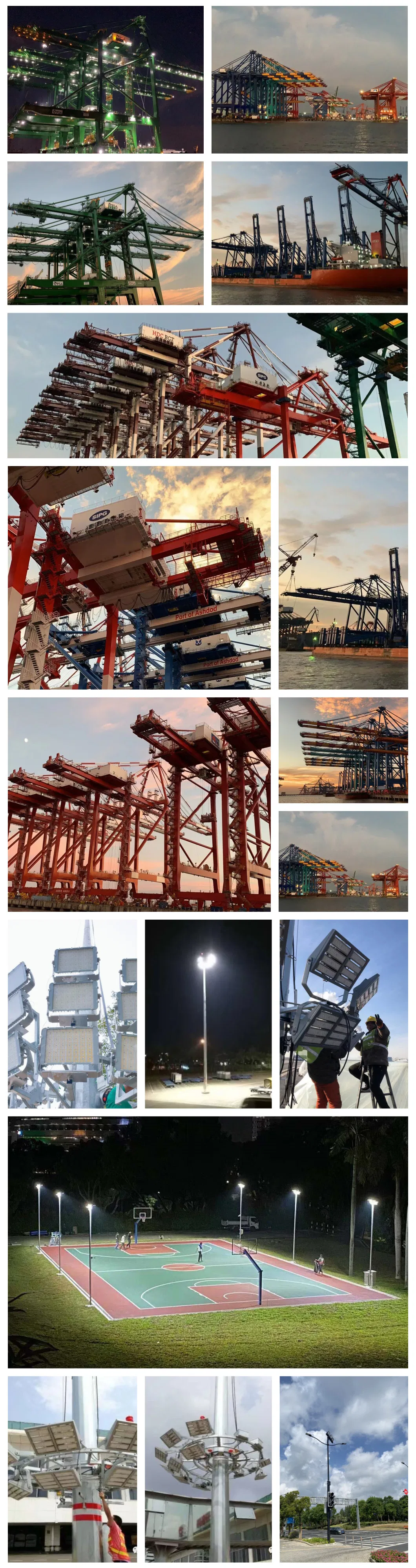

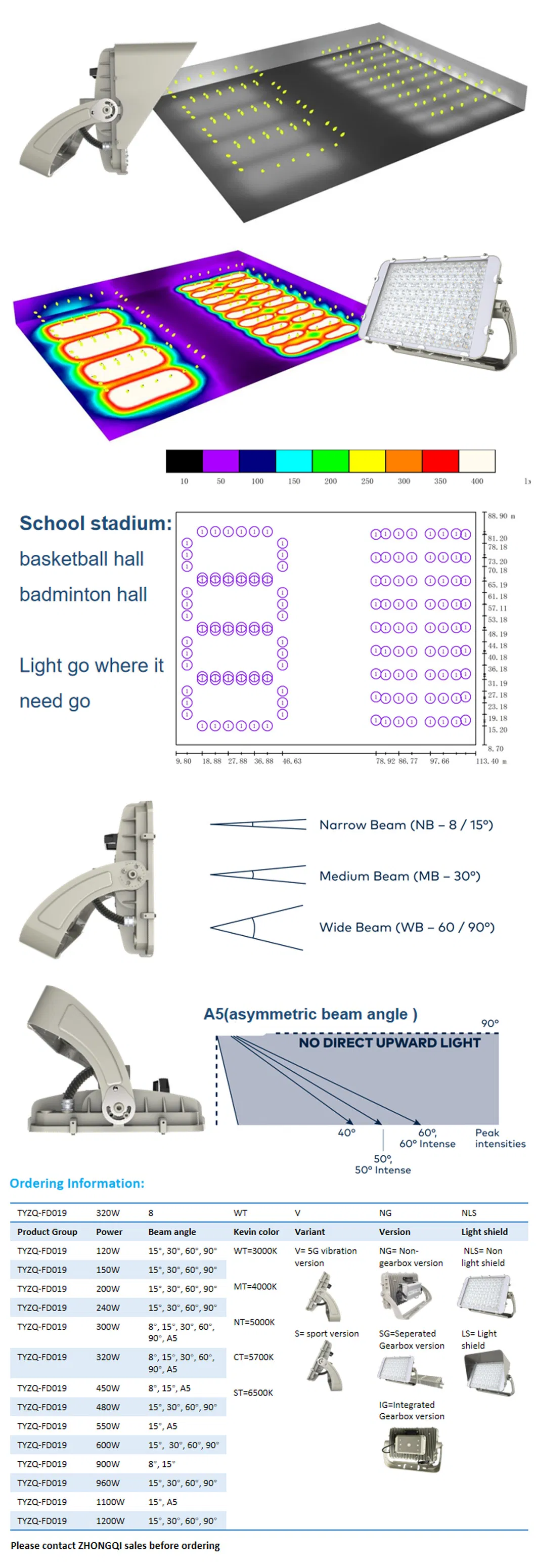

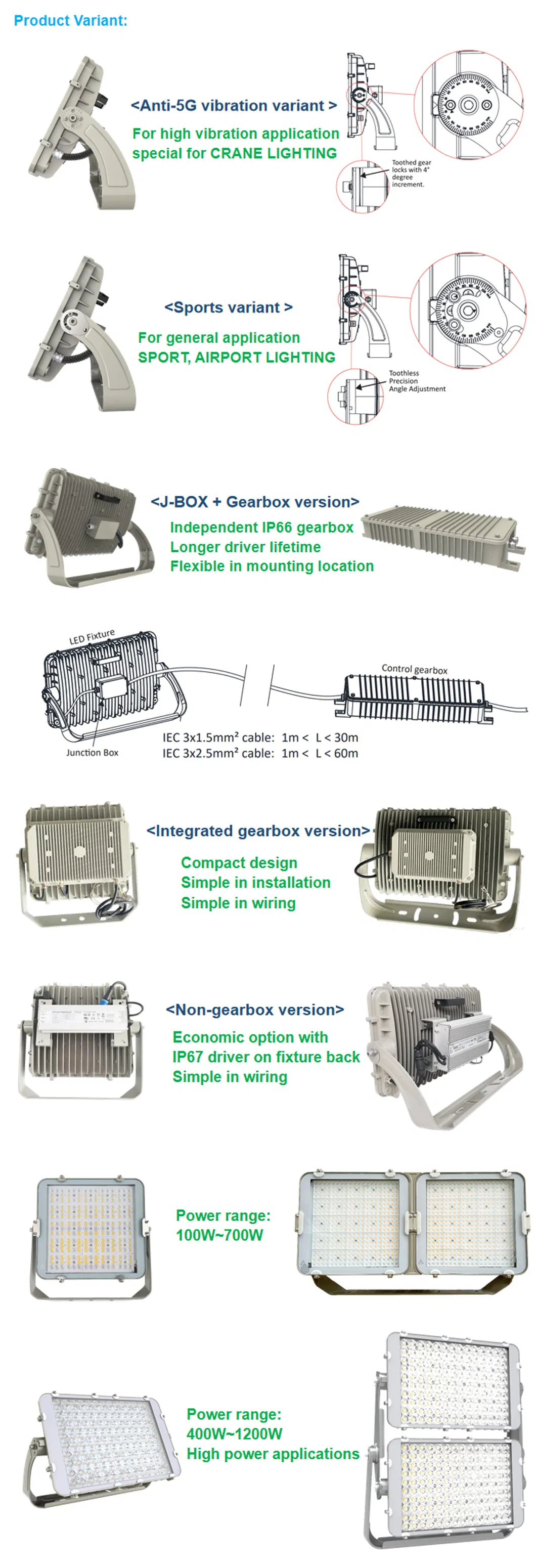

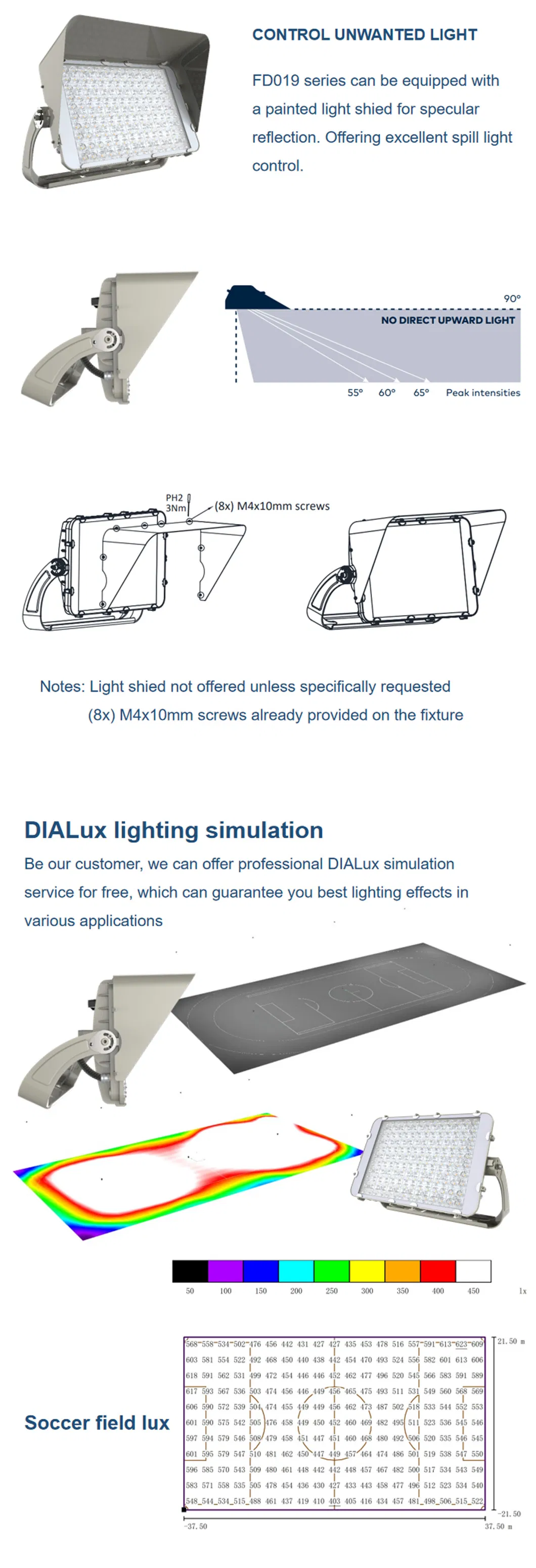

Product Applications & Details
Packaging & Shipping
Packaging
Frequently Asked Questions
Can I have a sample before quantity orders?
Yes, we welcome sample orders for your approval and testing.
What about the lead time?
Samples take 3-5 days, while quantity orders typically take 25-30 days.
Is ODM or OEM service accepted?
Yes, we provide comprehensive ODM & OEM services to meet your specific requirements.
How long is the warranty for your products?
We offer a 2-5 year warranty on our products depending on the configuration.
What are the payment terms?
Our standard terms are 30% TT deposit and 70% balance before shipment.
Does this light support dimming?
Yes, it supports 1-10V dimming as standard, with PWM and DALI available upon request.
